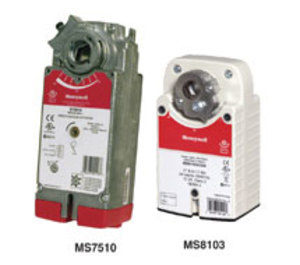

MS8103A1130 | Honeywell | Actuators & Dampers
27 IN-LB, SR, 2 POS, 24VAC SPDT SW
Brand:Honeywell
MPN:MS8103A1130
SKU:MS8103A1130
List Price:
$907.00
Today's Price:
$471.64
Log in for customized pricingproduct specifications
Supply Va
6 VA
Torque
27 in-lb
Supply Voltage (Nominal)
24 VAC
Control Signal
Two Position
product series specifications
Input Impedance: 100 kΩ @ 0/2-10 VDC; 500Ω @ 4-20 mA
Motor: 2-position DC with brushes; Modulating: Brushless DC
Wiring: Enclosed terminals
Action: 2-position Mounting orientation direct/reverse acting; Modulating: Switch selectable direct/reverse acting Rotation 95° ± 3°
Drive Time: 2-position: 45 seconds; Modulating: 90 seconds
Spring Return Time: 27, 44 in-lb: 25 seconds; 88, 175 in-lb: 20 seconds
Manual Override: Manual crank (88, 175 in-lb only) Noise <50 db @ 3' (1m)
Life Expectancy: 60,000 cycles, 1.5 million repositions
Operating Temperature: MSxx03, xx05 2-pos.: -22° to 150°F (-30° to 65°C); MSxx03, xx05 Mod.: -40° to 150°F (-40° to 65°C); MXxx10, xx20: -40° to 140°F (-40° to 60°C) Operating Humidity 5 to 95% RH
Enclosure Rating: NEMA 2 (IP54)
Approvals: cULus, CE, C-tick, plenum rated
Warranty: 5 years
product series features
- Self-centering shaft adapter for steady operation
- Auto adapt on modulating models for stroke precision
- Selector switch for proportional or floating control
- Detachable wiring cover
more information & related documents
Series Description
The Honeywell MS Series direct coupled damper actuators provide damper control for spring return applications and are controlled via all of the standard control signals.
Kele Description
27 IN-LB, SR, 2 POS, 24VAC SPDT SW
Manufacturer
Honeywell
