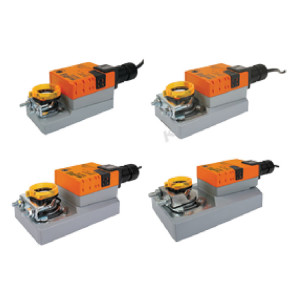

* product series image displayed

LHQB24-MFT-100-C | Belimo | Actuators & Dampers

ACT/NSR/22LBF(100NF)/ 24VAC/VDC/MFT

Brand:Belimo

MPN:LHQB24-MFT-100-C

SKU:LHQB24MFT-100-C

List Price:

$879.00

Today's Price:

$457.08

(login for better pricing)

Lead time of 10 days. Chat with Kele experts now

catalog page

product specifications

Torque

22 lbf

Supply Va

23 VA

Control Signal

Analog

Supply Voltage (Nominal)

24 VAC

product series specifications

24 VAC ±20% 50/60 Hz, 24 VDC ±10%, 100 VAC, 240 VAC

Brushless DC

3' (0.9 m) plenum cable, 18 AWG, terminals

Non-spring return

95 degrees, Rev. with switch

Pushbutton disengage

<45 db @ 3' (1m); <35 db @ 3' (1m) (LMB models)

100 steps

100,000 cycles, 1 million repositions

-22° to 122°F (-30° to 50°C)

5 to 95% RH

, UL94-5VA

5 years

product series features

Manual override for testing and verification
Reversing switch for control flexibility
CSA and CE approved for worldwide application
Plenum-rated housing and cable connections
NEMA 4 models available for outdoor locations

more information & related documents

Series Description

The Belimo LMB, NMB, AMB, GMB Series direct coupled damper actuators and valve actuators provide damper control and valve control for non-spring return applications in Building Automation Systems, BAS, or HVAC environment. Each actuator comes in two-position, tri-state (floating), proportional, and Multi-Function Technology (MFT) models. All actuators include a manual release mechanism for manual override.

Kele Description

ACT/NSR/22LBF(100NF)/ 24VAC/VDC/MFT

Manufacturer

Belimo
