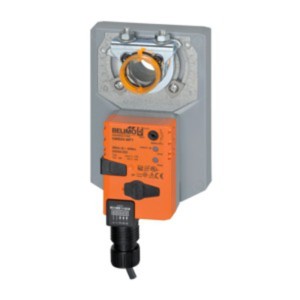

GMB24-MFT | Belimo | Actuators & Dampers
Damper Actuator, 360 in-lb, Non-Spring Return, 24V, Modulating
Brand:Belimo
MPN:GMB24-MFT
SKU:GMB24-MFT
product specifications
Actuator Series
GM
Agency Listings
cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2004/108/EC and 2006/95/EC
Ambient Temperature Range
-22 to 122 °F (-30 to 50 °C)
Angle of Rotation
95°
Application Type
Air
Feedback Output U
2 to 10 VDC, 0.5 mA max, VDC variable
Housing
NEMA 2, IP54, UL Enclosure Type 2
Humidity
5 to 95% RH non condensing (EN 60730-1)
Input Impedance
100 k Ω for 2 to 10 VDC (0.1 mA), 500 Ω for 4 to 20 mA, 1500 Ω for PWM, floating point and On/Off
Manual Override
External Push Button
Position Indication
reflective visual indicator (snap on)
Power Consumption Holding
1.5 W
Power Consumption Running
4.5 W
Power Supply
24 VAC ± 20%, 50/60 Hz, 24 VDC ± 10%
Power Supply Type
24V
Quality Standard
ISO 9001
Running Time
MFT (20 to 300 seconds)
Servicing
maintenance free
Shaft Diameter
1/2 in to 1.05 in round, centers on 1/2 in and 3/4 in with insert, 1.05 in without insert
Storage Temperature Range
-40 to 176 °F (-40 to 80 °C)
Torque
360 in-lb
Transformer Sizing
7 VA (class 2 power source)
Unit of Measure
PC
Supply Va
7 VA
Control Signal
Analog
Supply Voltage (Nominal)
24 VAC
product series specifications
Supply Voltage: 24 VAC ±20% 50/60 Hz, 24 VDC ±10%, 100 VAC, 240 VAC
Motor: Brushless DC
Wiring: 3' (0.9 m) plenum cable, 18 AWG, terminals
Action: Non-spring return
Rotation: 95 degrees, Rev. with switch
Manual Override: Pushbutton disengage
Noise: <45 db @ 3' (1m); <35 db @ 3' (1m) (LMB models)
Resolution: 100 steps
Life Expectancy: 100,000 cycles, 1 million repositions
Operating Temperature: -22° to 122°F (-30° to 50°C)
Operating Humidity: 5 to 95% RH
Approvals: UL94-5VA
Warranty: 5 years
product series features
- Manual override for testing and verification
- Reversing switch for control flexibility
- CSA and CE approved for worldwide application
- Plenum-rated housing and cable connections
- NEMA 4 models available for outdoor locations
more information & related documents
Series Description
The Belimo LMB, NMB, AMB, GMB Series direct coupled damper actuators and valve actuators provide damper control and valve control for non-spring return applications in Building Automation Systems, BAS, or HVAC environment. Each actuator comes in two-position, tri-state (floating), proportional, and Multi-Function Technology (MFT) models. All actuators include a manual release mechanism for manual override.
Kele Description
ACT/NSR/360IN-LB(40NM)/ 24VAC/VDC/MFT/2-10VDC
