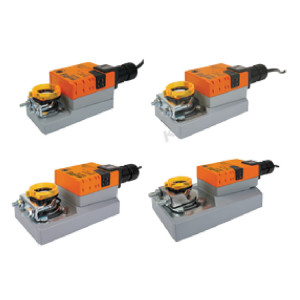

* product series image displayed

AMX24-MFT-T-N4 | Belimo | Actuators & Dampers

ACT/NSR/160IN-LB (18NM)/ 24VAC/VDC/MFT/N4/2-10VDC

Brand:Belimo

MPN:AMX24-MFT-T-N4

SKU:AMX24-MFT-T-N4

List Price:

$1,067.00

Today's Price:

$554.84

(login for better pricing)

Lead time of 7 days. Chat with Kele experts now

catalog page

product specifications

Torque

160 in-lb

Supply Va

6 VA

Control Signal

Analog

Supply Voltage (Nominal)

24 VAC

product series specifications

24 VAC ±20% 50/60 Hz, 24 VDC ±10%, 100 VAC, 240 VAC

Brushless DC

3' (0.9 m) plenum cable, 18 AWG, terminals

Non-spring return

95 degrees, Rev. with switch

Pushbutton disengage

<45 db @ 3' (1m); <35 db @ 3' (1m) (LMB models)

100 steps

100,000 cycles, 1 million repositions

-22° to 122°F (-30° to 50°C)

5 to 95% RH

, UL94-5VA

5 years

product series features

Manual override for testing and verification
Reversing switch for control flexibility
CSA and CE approved for worldwide application
Plenum-rated housing and cable connections
NEMA 4 models available for outdoor locations

more information & related documents

Series Description

The Belimo LMB, NMB, AMB, GMB Series direct coupled damper actuators and valve actuators provide damper control and valve control for non-spring return applications in Building Automation Systems, BAS, or HVAC environment. Each actuator comes in two-position, tri-state (floating), proportional, and Multi-Function Technology (MFT) models. All actuators include a manual release mechanism for manual override.

Kele Description

ACT/NSR/160IN-LB (18NM)/ 24VAC/VDC/MFT/N4/2-10VDC

Manufacturer

Belimo
