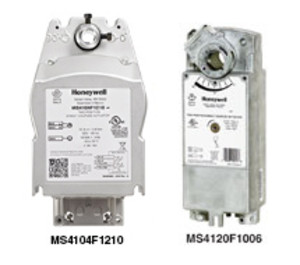

* product series image displayed
MS4620F1203 | Honeywell | Actuators & Dampers
FIRE/SMK ACT., 175 IN-LB, 230V, 2 AUX. SW.
Brand:Honeywell
MPN:MS4620F1203
SKU:MS4620F1203
product specifications
Torque
175 in-lb
Supply Va
46 VA
Control Signal
Two Position
Supply Voltage (Nominal)
240 VAC
product series specifications
- Motor:
- DC with brushes
- Wiring:
- :
- MS4xxx 32" leads, 18 AWG and 7/8" knockout holes for conduit fittings
- :
- MS8xxx 39" leads, 18 AWG and 7/8" knockout holes for conduit fittings
- :
- Action:
- CW/CCW mounting method
- Rotation:
- 95° ±3°, mechanically limited
- Auxilliary Switch:
- :
- -F120X 2 SPST, 5A res., 3A ind. @ 250VAC
- :
- -F10XX None
- Noise:
- :
- Driving Open 80 dBA @ 3' (1.0 m)
- :
- Holding 20 dBA @ 3' (1.0 m) no audible noise
- Life Expectancy:
- 30,000 cycles
- Operating Temperature:
- 0° to 130‚Ñâ (-18° to 55‚ÑÉ)
- Operating Humidity:
- 5 to 95% RH, non-condensing
- Approvals:
- CE, C-TICK, cULus,UL873, NEMA1
- Warranty:
- 5 years
product series features
- Designed to meet UL-555 and UL-555S requirements
- Robust die-cast aluminum housing for protection and long service life
- Maximum spring return timing of 15-20 seconds
- Reliably built by the industry leader
- Energy-saving patented design
- No audible noise during holding
more information & related documents
Series Description
Honeywell fire and smoke damper actuators are designed to meet both UL-555 and UL-555S 350 degrees F safety requirements for combined fire and smoke applications. The fast-acting actuators close dampers in 15-20 seconds, and the integral spring return ensures the consistent, proper level of torque.
Kele Description
FIRE/SMK ACT., 175 IN-LB, 230V, 2 AUX. SW.
Manufacturer
Honeywell
