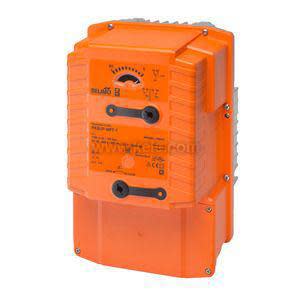

PKBUP-MFT-T | Belimo | Actuators & Dampers
Damper Actuator, 1400 in-lbs 160 Nm, Electronic fail-safe, AC 24...240 V / DC 24...125 V, DC 2...10 V, 2 x SPDT
Brand:Belimo
MPN:PKBUP-MFT-T
SKU:PKBUP-MFT-T
product specifications
Torque
140 in-lb
Weight
12.8
Supply Va
68 VA
Control Signal
Analog
Supply Voltage (Nominal)
240 VAC
product series specifications
- Power Requirements :
- 24...240 VAC, -20% / +10%, 50/60 Hz, 24...125 VDC, -20% / +10%
- Input Impedance :
- :
- PMBUP-MFT-T 100 k Ω for 2 to 10 VDC (0.1 mA), 500 Ω for 4 to 20 mA, 1500 Ω for On/Off
- :
- PMBUP-3-T 1000 Ω
- :
- PKBUP-MFT-T 100 k Ω for 2 to 10 VDC (0.1 mA), 500 Ω for 4 to 20 mA, 1500 Ω for On/Off
- Ambient Operating Conditions:
- -22‚Ñâ to 122‚Ñâ -30‚ÑÉ to 50‚ÑÉ, 5 to 100% RH (UL Type 4)
- Ambient Storage Conditions:
- :
- PMBUP-MFT-T -40‚Ñâ to 176‚Ñâ -40‚ÑÉ to 80‚ÑÉ
- Dimensions (H x W x D) :
- 12.08 x 5.39 x 7.95 in. (307 x 137 x 202 mm)
- Enclosure:
- NEMA 4X, IP66/67, UL Enclosure Type 4
- Shipping Weight :
- :
- PKBUP-MFT-T 14.1 lbs (6.4 kg)
- :
- PKMUP-3-T 12.8 lbs (5.8 kg)
- :
- PKMUP-MFT-T 12.8 lbs (5.8 kg)
product series features
- Electronic fail-safe (PKBUP-MFT-T) with super capacitor technology enables replacement of legacy high-torque spring return pneumatic actuators.
- Selectable fail position (0-100%) and fail-safe delay time (1-10 sec) eliminates unnecessary actuator movements during short brownout conditions; avoiding changes in the HVAC and building automation system.
- Fail-safe running time is 30 seconds.
- Near Field Communication (NFC) allows fast programming, commissioning and troubleshooting; even when the actuator is not powered.
- Adjustable running time is configurable from 30 to 120 seconds to meet application needs.
- - Configurable control signal input options include: 4-20 ma, 2-10 VDC, 0.5-10 VDC, variable (0.5-32 VDC with min 2 VDC start/stop span), floating, or on/off control to meet system requirements.
- Configurable position feedback signal options include 2-10 VDC or 0-10 VDC to meet controller requirements.
- Configurable angle of rotation allows throttling range adjustment for damper applications with less than 90 degree travel.
- BACnet and Modbus communication protocol provide superior application data access to execute advanced BMS control sequences. Protocols are BACnet MS/TP and Modbus RTU.
- Universal Power Supply simplifies product selection and filed wiring (24 to 240 VAC / 24 to 125 VDC)
- - Sensor monitoring of two passive inputs is available for integration to BMS controller via BACnet or Modbus. Available sensor inputs are PT-1000, Ni-1000 and NTC 10K Type II.
- Smart heating logic uses on-board temperature and humidity sensors within the actuator to prevent condensation within the housing and improve actuator operating performance and longevity.
- Manual override to desired damper position using detachable hand crank, whether the actuator is off or powered on. Damper position is maintained until hand crank is removed.
