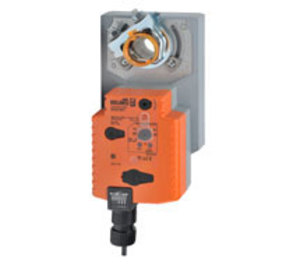

GKX24-MFT-T-N4 | Belimo | Actuators & Dampers
ACT/FAILSAFE/360IN-LB (40NM)/ 24VAC/DC/MFT/2-10VDC
Brand:Belimo
MPN:GKX24-MFT-T-N4
SKU:GKX24-MFT-T-N4
product specifications
Torque
360 in-lb
Supply Va
21 VA
Control Signal
Analog
Supply Voltage (Nominal)
24 VAC
product series specifications
Supply Voltage: 24 VAC ±20% 50/60 Hz
Control Signal: Two-position, floating, Proportional 2-10 VDC, 4-20 mA
Operating Humidity: 5 to 95% RH
Approvals: UL, CE, cUL
Warranty: 5 years
product series features
- Fail-safe operation upon power loss for positive damper or valve positioning
- 360 in-lb is more power than spring return models
- LED Status Indication
- Visible position indicator
more information & related documents
Series Description
The Belimo GK Series fail-safe actuators provide 360 in-lb of torque for operation of dampers up to approximately 90 square feet. The direction of rotation is reversible, the fail-safe position is adjustable and a manual override button is standard. Add-on field mount auxiliary switches and feedback potentiometers are available.
Kele Description
ACT/FAILSAFE/360IN-LB (40NM)/ 24VAC/DC/MFT/2-10VDC
Manufacturer
Belimo
Related Documents
