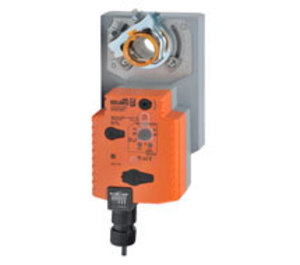

AHKX24MFT-100-C | Belimo | Actuators & Dampers

ACT/SR/101LBF(450NF)/24VAC/VDC/MFT

Brand:Belimo

MPN:AHKX24MFT-100-C

SKU:AHKX24MFT-100-C

List Price:

$2,483.00

Today's Price:

$1,291.16

catalog page

Call 877.826.9045 for availability

product specifications

Supply Va

22 VA

Torque

101 lbf

Supply Voltage (Nominal)

24 VAC

Control Signal

Analog

product series specifications

Supply Voltage: 24 VAC ±20% 50/60 Hz

Control Signal: Two-position, floating, Proportional 2-10 VDC, 4-20 mA

Operating Humidity: 5 to 95% RH

Approvals: UL, CE, cUL

Warranty: 5 years

product series features

Fail-safe operation upon power loss for positive damper or valve positioning
360 in-lb is more power than spring return models
LED Status Indication
Visible position indicator

more information & related documents

Series Description

The Belimo GK Series fail-safe actuators provide 360 in-lb of torque for operation of dampers up to approximately 90 square feet. The direction of rotation is reversible, the fail-safe position is adjustable and a manual override button is standard. Add-on field mount auxiliary switches and feedback potentiometers are available.

Kele Description

ACT/SR/101LBF(450NF)/ 24VAC/VDC/MFT

Manufacturer

Belimo
