![CDRS15SX2SSB9](https://assets.kele.com/product-assets/ruskin/skus/cdrs15gx1b10/images/144_lwg_cdrs15gx1b10.jpg)
CDRS15SX2SSB9 | Ruskin Manufacturing | Actuators & Dampers

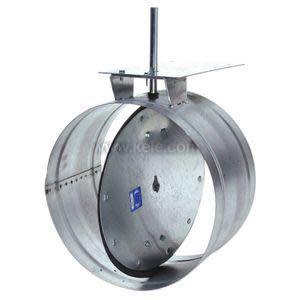

The CDRS15 is a True Round Commercial Control Damper That Installs Easily In Round Spiral Ductwork. Galv. Round, Flat Blade, Class III Leakage, Medium Duty, 3000 Fpm, 10 W.C. Max. 9 Round Stainless Steel 304-Damper, Mounting Plate, W/O Seals
Brand:Ruskin Manufacturing
MPN:CDRS15SX2SSB9
SKU:CDRS15SX2SSB9
product specifications
Type
Stainless Steel, Medium Duty
Diameter
9 in
Shape
Round
Leakage Rating
Class 2
Seal Type
No Seal
Blade Configuration
Full Circumference
Mounting Option
Inline, w/Mounting Plate
Frame Material
Galvanized Steel
Frame Gauge
304 Stainless Steel
Operator Shaft
6 x 1/2 in
product series specifications
Size: 4", 5", 6", 7", 8", 9", (10" to 24" even)
Type: Round, single-blade, 90° rotation
Shaft:Length: 7" (17.8 cm); Diameter: 1/2" (1.3 cm)
Actuator Bracket: Opt. galvanized or stainless steel, 5.5"W x 9.3"L (to shaft center)
Operating Torque: (4xD") + 20 in-lb (with seals); (1.5xD") + 20 in-lb (without seals)
Maximum Static Pressure:4" to 6": 10" WC; 7" to 12": 8" WC; >12": 6" WC
Maximum Velocity: 4000 ft/min (28.5 m/s)
Leakage Class:with Seals: AMCA Class 1; without Seals : 1.4% to 5.5% of maximum flow
Blade Seals: Optional (See ordering)
Frame: Galvanized 20-gauge steel
Bearings: Stainless steel
Blade Design: Riveted double-layer galvanized steel, full blade neoprene seals (standard, others optional)
Operating Temperature: -50° to 250°F (-46° to 121°C)
Dimensions: 4" through 24" diameter, 7" frame length
Weight: Approximately 1 lb per inch diameter
Approvals:
Warranty: 1 year
product series features
- Round sizes from 4 in to 24 in
- Velocities up to 4000 FPM
- Neoprene blade seal standard
- 20-gauge frame
- Two-ply blade, strength equivalent to 14-gauge steel
more information & related documents
Series Description
The Ruskin CDRS25 Series round damper frames are made of 20-gauge welded, galvanized steel, 7 in length. Blades are double-skin galvanized steel, strength-equivalent to 14-gauge steel but lighter to handle. Shaft extensions are 1/2 in diameter with stainless-steel bearings for long-life damper actuation. Standard neoprene blade edge seals offer superior low-leakage performance. Optional aluminum or stainless-steel construction is available, as well as an actuator mounting bracket.
Kele Description
9 RND SS304-DMPR, MNTG PLT, W/O SEALS
Manufacturer
Ruskin Manufacturing
