CD60-20X28-PB-S | Ruskin Manufacturing | Actuators & Dampers

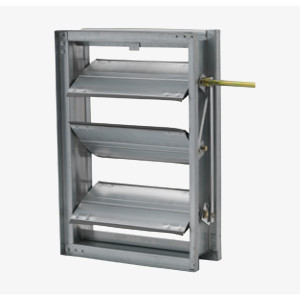

Rectangular AMCA Class 1A Leakage High Performance Control Damper, Galvanized Steel Frame and Airfoil Blades with Ruskinprene Blade Seals and Compressed 300 Series Stainless Steel Jamb Seals , Overall Dimensions: Width 20 inches x Height 28 inches, Parallel Blade, Standard Options include: Concealed Linkage, Operator Shaft 6 inches x 1/2 inch, 5 inches x 1 inch Hat Channel Dimensions, 6 inch Blade Width
Brand:Ruskin Manufacturing
MPN:CD60-20X28-PB-S
SKU:CD60-20X28-PB-S
product specifications
Type
Steel Frame Blade
Width
20 in
Height
28 in
Shape
Rectangular
Leakage Rating
Class 1A
Seal Type
Ruskiprene
Blade Configuration
Parallel
Frame Material
Galvanized Steel
Frame Gauge
16 Gauge Galvanized
Linkage
Concealed
Jamb Seals
Flexible Steel
Operator Shaft
6 x 1/2 in
Hat Channel Dimensions
5 x 1 in
Blade Width
6 in
product series specifications
Frame: 5" x 1" x 16 gauge (127 x 25 x 1.6) hot dipped galvanized steel hat channel reinforced with corner braces.
Blades: Galvanized steel, one piece airfoil shaped, construction of 14 gauge (2.0) equivalent thickness, typically 6" (152) wide, maximum 85/8" wide. Opposed blade action standard, parallel blade action optional.
Axles: 1/2" (13mm) plated steel hex.
Bearings: Oil impregnated, self-lubricating, stainless steel sleeve.
Blade Seals: Ruskiprene blade edge seals mechanically fastened to blades.
Jamb Seals: 300 Series stainless steel cambered compression type.
Linkage: Shake proof SwedgelockTM plated steel assembly, concealed out of airstream.
Control Shaft: 1/2" (13mm) dia. x 6" (152mm) long plated steel shaft on single section units. 1/2" (13) dia. jackshaft on multi-section assemblies up to 121/2 ft 2 (1.16 m2) and 1" (25) dia. jackshaft multi-section assemblies over 121/2 ft2 (1.16 m2)
Max Pressure: Up to 13 inches w.g.
Max Velocity: Up to 6000 FPM
Leakage: Class 1A
Temperature Limits: -72°F (-58°C) minimum and +275°F (+135°C) maximum.
Minimum Size: Single blade – 8"w x 6"h (203 x 152mm). Two blades, opposed or parallel action: 8"w x 10"h (203 x 254mm).
Maximum Size: Single section – 60"w x 72"h (1524 x 1829mm). Multiple section assembly – Unlimited size. *Units over 60"w or 72"h (1524 x 1829mm) are broken down into 48"w (1219mm) max sections.
Estimated Shipping Weight: 7 lbs. (3.2kg) per square foot.
product series features
- Energy savings for building owners
- Low noise generation and lowest pressure drop
- Low maintenance
more information & related documents
Series Description
Galvanized, rectangular, airfoil, class 1A leakage, heavy duty, 6000 fpm, 13 in w.c. max.
Kele Description
REC CONTROL DAMPER, STL BLADE/FRAME, LEAKAGE CLASS1A, W20IN X H28IN, PARALLEL,RUSKIPRENE BLADE SEALS
Manufacturer
Ruskin Manufacturing
ControlMaintenance_Ruskin_Dampers
