MS7405A2030/U | Honeywell | Actuators & Dampers
ACT/SR/44INLB/ 24VAC/VDC/PROPORTIONAL
Brand:Honeywell
MPN:MS7405A2030/U
SKU:MS7405A2030/U
product specifications
Supply Voltage (Nominal)
24 VAC
product series specifications
Input Impedance: 100 kO @ 0/2-10 VDC; 500O @ 4-20 mA
Motor: 2-position DC with brushes; Modulating: Brushless DC
Wiring: Enclosed terminals
Action: 2-position Mounting orientation direct/reverse acting; Modulating: Switch selectable direct/reverse acting Rotation 95° ± 3°
Drive Time: 2-position: 45 seconds; Modulating: 90 seconds
Spring Return Time: 27, 44 in-lb: 25 seconds; 88, 175 in-lb: 20 seconds
Manual Override: Manual crank (88, 175 in-lb only) Noise <50 db @ 3' (1m)
Life Expectancy: 60,000 cycles, 1.5 million repositions
Operating Temperature: MSxx03, xx05 2-pos.: -22° to 150°F (-30° to 65°C); MSxx03, xx05 Mod.: -40° to 150°F (-40° to 65°C); MXxx10, xx20: -40° to 140°F (-40° to 60°C) Operating Humidity 5 to 95% RH
Enclosure Rating: NEMA 2 (IP54)
Approvals: cULus, CE, C-tick, plenum rated
Warranty: 5 years
product series features
- Self-centering shaft adapter for steady operation
- Auto adapt on modulating models for stroke precision
- Selector switch for proportional or floating control
- Detachable wiring cover
more information & related documents

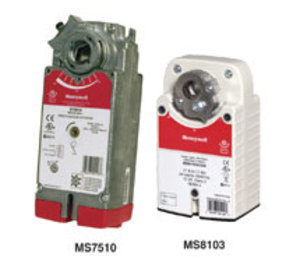

Series Description
The Honeywell MS Series high-performance spring return direct coupled actuators are designed and tested to provide reliable spring return control for dampers and valves. The MS Series has an excellent feature set that combines flexibility and simplicity.
Kele Description
ACT/SR/44INLB/ 24VAC/VDC/PROPORTIONAL
Manufacturer
Honeywell
MS Series Product Datasheet
