ASK71.4 | Siemens Industry | Actuators & Dampers

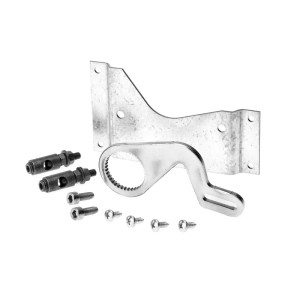

This Crank Arm Kit with Bracket is for use in applications where the actuator can be rigidly surface-mounted and a linear stroke output is required. This kit can be used with OpenAir GCA, GBB, GIB and GKB damper actuators.

Brand:Siemens Industry

MPN:ASK71.4

SKU:ASK71.4

List Price:

$181.00

Today's Price:

$94.12

(login for better pricing)

Lead time of 4 days. Chat with Kele experts now

product datasheet

catalog page

product specifications

Type

Crank Arm

product series specifications

GXA161.1P, GNP191.1P 100k‚Ñ¶ @ 0/2-10VDC

GXA151.1P 100k‚Ñ¶ @ 0/2-10VDC, 500‚Ñ¶ @ 4-20ma

Brushless DC

60,000 cycles, 100,000 full stroke cycles, 7,000,000 repositions (GNP)

95°

Manual crank (except GQD), Disengage button (GNP)

-25° to 130°F (-32° to 55°C),

0° to 122°F (-18° to 50°C) (GNP)

5 to 95% RH non-condensing

Brushless DC

3 ft (1.0 m), 18 AWG standard cable (.1U models), 3 ft (1.0 m), 18 AWG plenum cable (.1P models) See notes in Ordering Information for plenum option

1/2‚Ä= NSPT (GCA, GMA only)

100 Steps

<40 db @ 3' (1m)

100k‚Ñ¶ @ 0/2-10VDC

500‚Ñ¶ @ 4-20ma

UL File #E35198, CE, plenum rated

2 years

product series features

Self-centering shaft coupling
Brushless DC motor technology
Rugged, lightweight housings

more information & related documents

Series Description

The Siemens GMA and GCA Series direct-coupled spring-return actuators can control a complete range of HVAC spring-return damper applications. Each spring-return damper actuator is available in either 62 in-lb (7 Nm) torque, handling approximately 16 sq ft of damper area, or 160 in-lb (18 Nm) torque, handling approximately 40 sq ft of damper area. These damper actuators are available in all standard control signal types and offer a wide variety of options and accessories for building automation systems, BAS, applications.

Kele Description

CRANK ARM LINEAR STROKE KIT

Manufacturer

Siemens Industry
