ASE1 | Siemens Industry | Actuators & Dampers

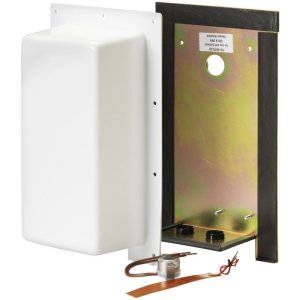

MX.461 REPAIR MODULE,.75-1.25"
Brand:Siemens Industry
MPN:ASE1
SKU:ASE1
product specifications
Type
Repair
product series specifications
- Supply Voltage:
- 20-28 VAC, 50/60 Hz
- GAP Series:
- 24 VAC/VDC, ±20%, 50/60 Hz
- Motor:
- Brushless DC
- Wiring:
- 3' (0.9 m) AWG 18 plenum-rated cable
- Action:
- DA/RA wire connections (2-pos, floating), DA/RA switch selectable (proportional)
- Enclosure:
- See dimensions
- Rotation:
- 95°
- Manual Override:
- Disengage button
- Shaft Coupling:
- Self centering with single screw
- :
- GDE, GLB Locking screw with bushing
- Noise:
- <45 db @ 3' (1m), (except GAP Series)
- Life Expectancy:
- 60,000 cycles, 1.5 million repositions
- GAP Series:
- 100,000 full stroke cycles, 7,000,000 repositions
- Operating Temperature:
- -25° to 130°F (-32° to 55°C)
- GAP Series:
- 0° to 122°F (-18° to 50°C)
- Operating Humidity:
- 5 to 95% RH non-condensing
- Approvals:
- UL File #E35198, CE, plenum rated, RoHs
- Warranty:
- 2 years
product series features
- Self-centering shaft coupling
- Brushless motor technology on all models
- Rugged, lightweight housing
more information & related documents
Series Description
The Siemens GDE, GLB, GEB, GBB, GIB, and GAP Series direct-coupled, non-spring return actuators provide actuation for a complete range of HVAC non-spring return damper applications, from terminal units to inlet vane dampers and more. They range in torque from 44 in-lb (5 Nm), handling approximately 11 sq ft of damper area, to 310 in-lb (35 Nm), handling approximately 77 sq ft of damper area. These actuators are available in all standard control signal types and offer a wide variety of options and accessories.
Kele Description
MX.461 REPAIR MODULE,.75-1.25"
Manufacturer
Siemens Industry
Related Documents
GBB-GIB Floating Technical Instructions
GBB-GIB Installation Instructions
GBB-GIB ModulatingTechnical Instructions
GBB-GIB Prop. Technical Instructions
GDE-GLB Floating Technical Instructions
GDE-GLB Installation Instructions
GDE-GLB Modulating Technical Instructions
GEB Installation Instructions
GEB Technical Instructions
GNP-GAP Installation Instructions
GNP-GAP Technical Instructions
Non-Spring Return Actuator Cross Reference Chart
