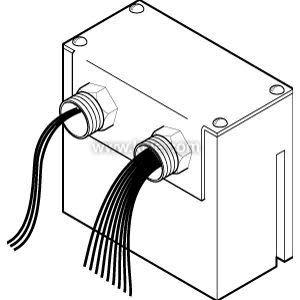

CP-8301-024 | Schneider Electric Buildings | Actuators & Dampers
Act Drive: 1-15 VDC Input, 24 VAC, 20 VDC Power Supply, 3 VDC Fixed Span
Brand:Schneider Electric Buildings
MPN:CP-8301-024
SKU:CP-8301-024
product specifications
Type
Actuator Drive
Weight
1
product series specifications
- Supply Voltage:
- 20 Vdc, 50 mA regulated and filtered
- Wiring:
- Color-coded pigtail leads.
- Operating Temperature:
- -40 to 140‚Ñâ (-40 to 60‚ÑÉ)
- Operating Humidity:
- 5 to 95% relative humidity, non-condensing
- Installation:
- Directly to an actuator. The upright position is preferred, but other positions are acceptable.
- Enclosure Rating:
- Black Phenolic - IDI 44-10 5VA - RoHS Compliant.
- Dimensions:
- 4‚Ä= x 3-1/4‚Ä= x 1‚Ä=
- Approvals:
- UL, CUL
product series features
- Mounts directly onto Schneider Electric proportional, electric, gear train actuators.
- Fixed 1 to 15 Vdc operating range.
- 24, 120, and 240 Vac models available.
- Color-coded pigtail leads.
more information & related documents
Series Description
The CP-8301-xxx Series Electronic Actuator Drive is designed to process a variable 1 to 15 Vdc signal from a controller to provide proportional control of an electric gear train actuator.
Kele Description
SOLID STATE DRIVE MP ACT 24V
Manufacturer
Schneider Electric Buildings
