TS1-475 | Kele | Actuators & Dampers

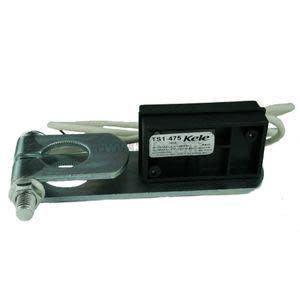

1 in. Non Mercury Damper End Switch

Brand:Kele

MPN:TS1-475

SKU:TS1-475

List Price:

$157.00

Today's Price:

$81.64

191 in stock

catalog page

product specifications

Type

Switch

product series specifications

Wiring: 3' (0.9 m) length, AWG 18, 3-conductor plenum-rated cable; black = common, white = N.C., red = N.O.

Switch Type: Mechanical roller ball, SPDT

Contact Rating: 5A @ 120/250 VAC

Switch Angle: N.O. makes at 10° above horizontal, breaks at 5° below horizontal

Operating Temperature: -30° to 130°F (-34° to 54°C)

Dimensions: TS-: 1.5"H x 1.5"W x 4.4"L (3.8 x 3.8 x 11.1 cm); TS1-: 1.8"H x 1.5"W x 5.5"L (4.5 x 3.8 x 14.0 cm)

Weight: TS-: 0.4 lb (0.2 kg); TS1-: 0.7 lb (0.3 kg)

Mounting: TS-: 1/2" (1.3 cm) damper shaft; TS1-: 1" (2.5 cm) damper shaft

Enclosure Rating: UL 94V-0 flammability rating

Warranty: 1 year

more information & related documents

Series Description

The TS-475 Series damper position switches use a roller ball and mechanical switch to provide open/closed damper position status. The TS-475 Series offers a non-mercury alternative for applications and for projects which do not allow mercury. Each switch is a proven performer in Building Automation System, BAS, and HVAC applications.

Kele Description

DAMPER END SWITCH/ONE SPDT/1" SHAFT/NON-MERCURY

Manufacturer

Kele
