TS1-470-2 | Kele | Actuators & Dampers
DAMPER END SWITCH/2 SPDT/1" SHAFT
Brand:Kele
MPN:TS1-470-2
SKU:TS1-470-2
product specifications
Type
Switch
product series specifications
- Contact Rating:
- :
- Non-plenum SPDT; 2A @ 120 VAC, 1A @ 240 VAC
- :
- -P models SPDT; 1A @ 120 VAC, 240 VAC
- Wiring:
- :
- TS(1)-470 3' (0.9 m) length, AWG 18, 3-conductor cable; green = common, black = N.C., white = N.O.
- :
- TS(1)-470-2 3' (0.9 m) length, AWG 18, two 3-conductor cables; green = common, black = N.C., white = N.O.
- :
- TS(1)-470-P 3' (0.9 m) length, plenum AWG 18, 3-conductor cable; black = common, blue = N.C., red = N.O.
- Switch Type:
- Encapsulated mercury switch, contains 0.03 cc mercury
- Switch Angle:
- Makes at 15° below horizontal
- Operating Temperature:
- -30° to 130‚Ñâ (-34° to 54‚ÑÉ)
- Mounting:
- :
- TS- 1/2" (1.3 cm) damper shaft
- :
- TS1- 1" (2.5 cm) damper shaft
- Dimensions:
- :
- TS- 1.4"H x 1.0"W x 4.4"L (3.6 x 2.5 x 11.1 cm)
- :
- TS1- 1.5"H x 1.8"W x 5.5"L (3.8 x 4.5 x 14.0 cm)
- Weight:
- :
- TS- 0.46 lb (0.21 Kg)
- :
- TS1- 0.8 lb (0.36 Kg)
- Warranty:
- 1 year
product series features
- Easy to install
- Easily adjustable
more information & related documents
Series Description

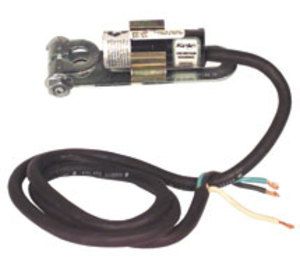

The TS-470 Series damper position switch consists of an encapsulated mercury switch mounted on a 1/2 in (1.3 cm) damper shaft crank arm. The TS1-470 Series includes the same switch, mounted on a 1 in (2.5 cm) crank arm. They are mounted on a horizontal damper shaft to provide opened/closed indication. Switch contacts are normal when the cable end of the switch is horizontal or above, and makes when the cable end drops more than 15º below horizontal. These switches are ideal for Building Automation System BAS and HVAC applications.
Kele Description
DAMPER END SWITCH/2 SPDT/1" SHAFT
Manufacturer
Kele
