M9000-158 | Johnson Controls | Actuators & Dampers

Mounting Kit to Tandem Mont 2 M9116-Ggx Or -Hgx Models… Etc See Url

Brand:Johnson Controls

MPN:M9000-158

SKU:M9000-158

List Price:

$164.00

Today's Price:

$85.28

(login for better pricing)

Lead time of > 15 days. See alternatives below orChat with Kele experts now

product datasheet

catalog page

product specifications

Type

Mounting

product series specifications

Input Impedance: 200 kO @ 0/2-10 VDC; 500 O @ 4-20 mA

Motor: Brushless DC

Wiring: 18 AWG, 120" (3m), plenum leads or 18 AWG, 48" (1.2m), appliance cable

Conduit Connection: 1/2" conduit connectors (M9203 only); Integral 3/8" flex connectors (all others)

Action: Select by wiring (2-pos./floating); Switch or hub re-position (proportional)

Rotation: 95° (M9203, M9208); 93° (M9220)

Manual Override: Manual crank (M9220 only)

Noise: < 55 db (M9203); < 52 db (M9208); < 40 db (M9220 2-pos.); < 66 db (M9220 floating/prop.)

Resolution: 120 steps

Life Expectancy: 60,000 cycles, 1.5 million repositions

Operating Temperature: -40° to 140°F (-40° to 60°C) (M9203, M9208); -40° to 131°F (-40° to 55°C) (M9220)

Operating Humidity: 0 to 95% RH

Enclosure Rating: NEMA 2 (IP54)

Approvals: CE, UL File #E22734. CSA C-tick (models vaires) (M9203, M9208); (M9220)

Warranty: 5 years

product series features

Reversible mounting design
Electronic stall detection
Models with auxiliary switches available (i.e. -AGC, -GGC, etc.)
Minimum 60,000 cycles life expectancy
Models with adjustable control signal (-HGx)

more information & related documents

Series Description

The Johnson Controls M9200 Series spring return actuators are designed to position return air, exhaust air, or outside air dampers. Torques range from 27 to 177 in-lbs and available control signals are two-position (on/off), tri-state (floating), and proportional.

Kele Description

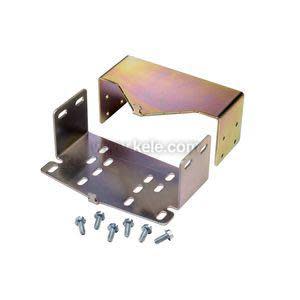

TANDEM MOUNTING KIT FOR M9220, M9210, AND M9216

Manufacturer

Johnson Controls
