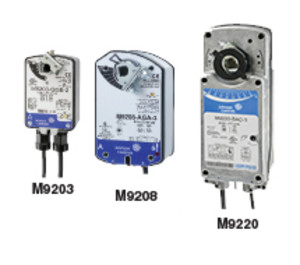

* product series image displayed
M9000-150 | Johnson Controls | Actuators & Dampers
DAMPER MOUNT LINGAGE KIT
Brand:Johnson Controls
MPN:M9000-150
SKU:M9000-150
product specifications
Type
Mounting
Weight
0.5
product series specifications
- Input Impedance:
- 200 kΩ @ 0/2-10 VDC; 500Ω @ 4-20 mA
- Motor:
- Brushless DC
- Wiring:
- 18 AWG, 120" (3m), plenum leads or 18 AWG, 48" (1.2m), appliance cable
- Conduit Connection:
- 1/2" conduit connectors (M9203 only); Integral 3/8" flex connectors (all others)
- Action:
- Select by wiring (2-pos./floating); Switch or hub re-position (proportional)
- Rotation:
- 95° (M9203, M9208); 93° (M9220)
- Manual Override:
- Manual crank (M9220 only)
- Noise:
- <55 db (M9203); <52 db (M9208); <40 db (M9220 2-pos.); <66 db (M9220 floating/prop.)
- Resolution:
- 120 steps
- Life Expectancy:
- 60,000 cycles, 1.5 million repositions
- Operating Temperature:
- -40° to 140°F (-40° to 60°C) (M9203, M9208); -40° to 131°F (-40° to 55°C) (M9220)
- Operating Humidity:
- 0 to 95% RH
- Enclosure Rating:
- NEMA 2 (IP54)
- Approvals:
- CE, UL FIle #E22734. CSA C-tick (models vaires) (M9203, M9208); (M9220)
- Warranty:
- 5 years
product series features
- Reversible mounting design
- Electronic stall detection
- Models with auxiliary switches available (i.e. -AGC, -GGC, etc.)
- Minimum 60,000 cycles life expectancy
- Models with adjustable control signal (-HGx)
more information & related documents
Series Description
The Johnson Controls M9200 Series spring return actuators are designed to position return air, exhaust air, or outside air dampers. Torques range from 27 to 177 in-lbs and available control signals are two-position (on/off), tri-state (floating), and proportional.
