220736B | Honeywell | Actuators & Dampers

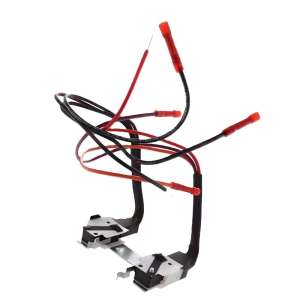

INTERNAL AUX SWITCH
Brand:Honeywell
MPN:220736B
SKU:220736B
product specifications
Type
Switch
Weight
0.4
product series specifications
- Supply Voltage:
- 20-30 VAC, 50/60 Hz
- Motor:
- :
- M9104, 06 Synchronous with magnetic clutch
- :
- M9108, 16, 24 32 Brushless DC
- Wiring:
- :
- M9104 48" (1.2 m) plenum leads
- :
- M9106 0.25" (6 mm) spade terminals
- :
- M9108, 16, 24, 32 Screw teminals 22-14 AWG
- Action:
- DA/RA wiring connections (2-pos., floating); Jumper selection (proportional)
- Rotation:
- 90°
- Manual Override:
- Disengage button
- Noise:
- :
- M9104, 06 <35 dB @ 3' (1m)
- :
- M9108, 16, 24, 32 <45 dB @ 3' (1m)
- Resolution:
- 100 Steps
- Life Expectancy:
- 100,000 cycles, 2.5 million repositions
- Operating Temperature:
- -4° to 122°F (-20° to 50°C)
- Operating Humidity:
- 0 to 90% RH
- Approvals:
- CE, UL FIle #E27734, CSA, C-Tick, C-tick, CSA (varies by model)
- Warranty:
- 5 years
product series features
- Manual override
- Electronic stall detection
- Travel indicator
more information & related documents
Series Description
The Johnson Controls M9100 Series non-spring return actuators offer consistent designs and operating features to make installation easy, and they have many built-in features to minimize the need for add-on options. Manufactured in an ISO-9001 facility, these actuators are high quality, reliable, and long lasting.
Kele Description
INTERNAL AUX SWITCH
Manufacturer
Honeywell
