FP04 | Security Door Controls | Access Control

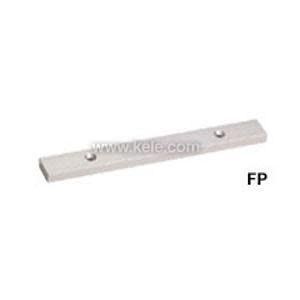

1/2 X 1-1/4 X 22 Filler Plate For 8-3/4 in Double Emlock Model

Brand:Security Door Controls

MPN:FP04

SKU:FP04V

List Price:

$125.00

Today's Price:

$65.00

Lead time of 6 days. Chat with Kele experts now

product datasheet

product specifications

Output

12 VDC, 24 VDC

Type

Brackets

Color

Stainless Steel

Strike Style

Magnetic

product series specifications

Supply Voltage: 12/24 VDC

Supply Current:

1581 220mA @ 24VDC 440mA @ 12VDC

1582 440mA @ 24VDC; 880mA @ 12VDC

Holding Force: 650 lbs

Dimensions:

1581 8.75"L x 2.1"H x 1.25"D (22.2 x 5.4 x 3.1 cm)

1582 17.5" L x 2.1" H x 1.25" D (44.4 x 5.4 x 3.1 cm)

Weight:

1581 11 lbs. (4.9 kg)

1582 26.4 lbs. (11.9 kg)

Approvals: UL, CSFM (3774-0324:100), MEA Listed (61-95-E)

Warranty: 1 year

product series features

650 lb holding force
Autosensing 12/24 VDC voltage input
ANSI/BHMA grade 1 compliant
BHMA certified holding force
Quick mount assembly

more information & related documents

Series Description

The 1580 Series is an ANSI grade 1 modular magnetic lock with 650 lb. holding force. They are field upgradeable and can be serviced without removing from the door frame. When power is removed the holding force is released.

Kele Description

ANGLE BRKT 765IN CUSTOM ENC

Manufacturer

Security Door Controls
