FB-4 | Security Door Controls | Access Control

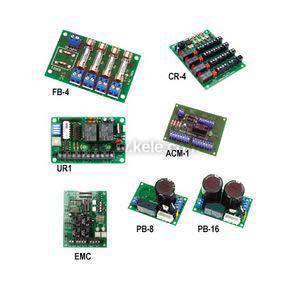

4 Fused Output Board

Brand:Security Door Controls

MPN:FB-4

SKU:FB-4

List Price:

$260.00

Today's Price:

$135.20

Lead time of 12 days. Chat with Kele experts now

product datasheet

installation instructions

catalog page

product specifications

Output

12 VDC, 24 VDC

Type

Fused Output Board

Holding Force

1650 lb

product series specifications

Supply Voltage: 115VAC, 50/60 Hz

Battery: Charger = 13.5/27VDC, 500 mA

Supply Current: 600 mA

Output: 12/24 VDC, 1 amp

Dimensions: 12”W x 12"H x 4"D (30.5 x 30.5 x 10.2 cm)

Weight: 8.8 lb (3.99 kg)

Approvals: UL file #BP7341

Warranty: 1 year

product series features

Emergency release input
Field selectable output 12/24VDC
Input and output protection
System status
Low battery disconnect

more information & related documents

Series Description

The SDC 602RF power supply-charger devices are equipped with high performance transformers and highly reliable electronic components. Filtering and output voltage regulation provides protection and ensures the longevity of all system components. The user-friendly modular designs ensure versatility, interface capability and easy installation of electric locking devices, access controls and related safety equipment. The AC input is fuse protected and secondary DC output is protected by auto-reset poly fuse.

Kele Description

4 FUSED OUTPUT BOARD

Manufacturer

Security Door Controls
