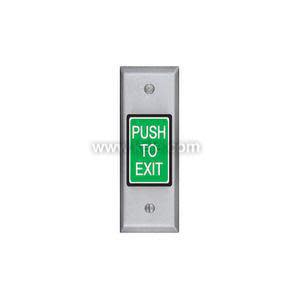

A narrow silver wall plate with a central green button labeled 'Push to Exit' and screw holes above and below.

413PNU | Security Door Controls | Alarms & Indication

Narrow Box Int Pneu Timer Single Pole, Double Throw 3A Push To Exit

Brand:Security Door Controls

MPN:413PNU

SKU:413PNU

List Price:

$1,071.00

Today's Price:

$556.92

product datasheet

installation instructions

catalog page

Lead time of 9 days. Chat with Kele experts now

product specifications

Strike Style

Push

Color

Stainless Steel

Type

Push Switch

Input

30 VDC

product series specifications

Contact Rating: SPDT, 5 Amp @ 30VDC

Timer:

413NU, 423AU, 423U 1 - 60 seconds, 12/24 VDC DPST 2 A

413PNU, 423PU 1 - 180 seconds 12/24 VDC SPDT 3 A

Connections: 6" leads, 20 gauge

Dimensions:

Narrow Box 1.75" x 4.5" (4.5 x 11.4 cm)

1 gang box 2.87" x 4.5" (7.3 x 11.4 cm)

Warranty: 1 year

more information & related documents

Series Description

The 410 and 420 Series illuminated switches come in two button sizes, 2 x 2 inch and 1.75 x 1 inch. The high impact resistant material stands up to abuse. The "PUSH TO EXIT" sign complies with NFPA requirements. The 422A is designed for access and egress applications for the disabled.

Kele Description

NARROW BOX INT PNEU TIMER SPDT 3A PUSH TO EXIT

Manufacturer

Security Door Controls
