412NU | Security Door Controls | Access Control

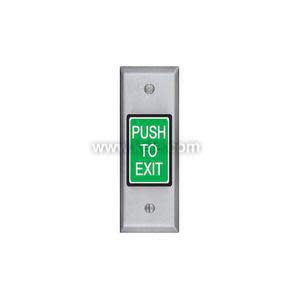

Narrow-Gang Box Momentary Single Pole, Double Throw With Push To Exit
Brand:Security Door Controls
MPN:412NU
SKU:412NU
product specifications
Type
Push Switch
Weight
0.5
Color
Stainless Steel
Strike Style
Push
Input
30 VDC
product series specifications
- Contact Rating:
- SPDT, 5 Amp @ 30VDC
- Timer:
- :
- 413NU, 423AU, 423U 1 - 60 seconds, 12/24 VDC DPST 2 A
- :
- 413PNU, 423PU 1 - 180 seconds 12/24 VDC SPDT 3 A
- Connections:
- 6" leads, 20 gauge
- Dimensions:
- Narrow Box 1.75" x 4.5" (4.5 x 11.4 cm)
- :
- 1 gang box 2.87" x 4.5" (7.3 x 11.4 cm)
- Warranty:
- 1 year
more information & related documents
Series Description
The 410 and 420 Series illuminated switches come in two button sizes, 2 x 2 inch and 1.75 x 1 inch. The high impact resistant material stands up to abuse. The "PUSH TO EXIT" sign complies with NFPA requirements. The 422A is designed for access and egress applications for the disabled.
Kele Description
NARROW-GANG BOX MOM SPDT PUSH TO EXIT
Manufacturer
Security Door Controls
Related Documents
400 Series Datasheet x
