1581VDB | Security Door Controls | Access Control

Emlock Surfaceace Mount-Sensor

Brand:Security Door Controls

MPN:1581VDB

SKU:1581-V-D-B

List Price:

$1,366.00

Today's Price:

$710.32

Lead time of 13 days. Chat with Kele experts now

product datasheet

installation instructions

product specifications

Type

Magnetic Lock

Color

Aluminum

Strike Style

Magnetic

Input

12 VDC, 24 VDC

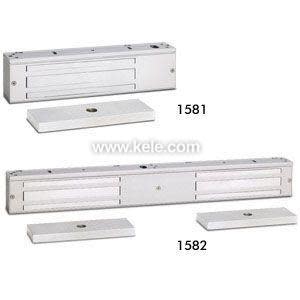

product series specifications

Supply Voltage: 12/24 VDC

Supply Current:

1581 220mA @ 24VDC 440mA @ 12VDC

1582 440mA @ 24VDC; 880mA @ 12VDC

Holding Force: 650 lbs

Dimensions:

1581 8.75"L x 2.1"H x 1.25"D (22.2 x 5.4 x 3.1 cm)

1582 17.5" L x 2.1" H x 1.25" D (44.4 x 5.4 x 3.1 cm)

Weight:

1581 11 lbs. (4.9 kg)

1582 26.4 lbs. (11.9 kg)

Approvals: UL, CSFM (3774-0324:100), MEA Listed (61-95-E)

Warranty: 1 year

product series features

650 lb holding force
Autosensing 12/24 VDC voltage input
ANSI/BHMA grade 1 compliant
BHMA certified holding force
Quick mount assembly

more information & related documents

Series Description

The 1580 Series is an ANSI grade 1 modular magnetic lock with 650 lb. holding force. They are field upgradeable and can be serviced without removing from the door frame. When power is removed the holding force is released.

Kele Description

EMLOCK SURFACE MNT-SENSOR

Manufacturer

Security Door Controls
