1576BK | Security Door Controls | Alarms & Indication

Bracket For 1576 Lock

Brand:Security Door Controls

MPN:1576BK

SKU:1576-BK

List Price:

$273.00

Today's Price:

$141.96

product datasheet

installation instructions

catalog page

Lead time of 9 days. Chat with Kele experts now

product specifications

Type

Brackets

Color

Stainless Steel

Strike Style

Magnetic

product series specifications

Supply Voltage: 12/24 VDC

Supply Current:

1571, 1573 125mA @ 24VDC, 250mA @ 12VDC

1572 250mA @ 24VDC, 500mA @ 12VDC

Holding Force: 1200 lbs

Dimensions:

1571, 1573 11"L x 2.75"H x 1.5"D (27.9 x 6.9 x 3.9 cm)

1572 22" L x 2.75" H x 1.5" D (55.8 x 6.9 x 3.9 cm)

Weight:

1571, 1573 11 lbs (4.9 kg)

1572 26.4 lbs (11.9 kg)

Approvals: UL, CSFM (3774-0324:100), MEA Listed (61-95-E)

Warranty: 1 year

product series features

1200 lb holding force
Autosensing 12/24 VDC voltage input
ANSI/BHMA grade 1 compliant
BHMA certified holding force
Quick mount assembly

more information & related documents

Series Description

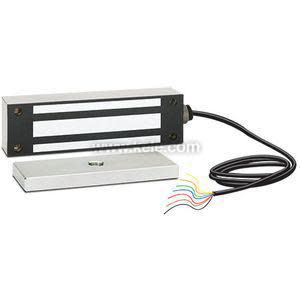

The 1570 Series is an ANSI grade 1 modular magnetic lock, with 1200 lb. holding force. They are field upgradeable and can be serviced without removing from the door frame. When power is removed the holding force is released.

Kele Description

BRACKET 1576 LOCK

Manufacturer

Security Door Controls
