1571VDB | Security Door Controls | Access Control

Magnetic Lock 12/24 Volt DC

Brand:Security Door Controls

MPN:1571VDB

SKU:1571VDB

List Price:

$1,625.00

Today's Price:

$845.00

Lead time of > 15 days. Chat with Kele experts now

product datasheet

installation instructions

catalog page

product specifications

Type

Magnetic Lock

Color

Aluminum

Strike Style

Magnetic

Input

12 VDC, 24 VDC

product series specifications

Supply Voltage: 12/24 VDC

Supply Current:

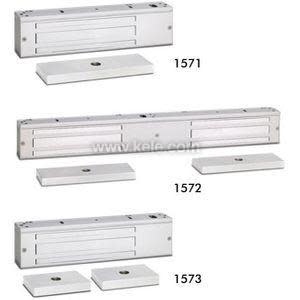

1571, 1573 125mA @ 24VDC, 250mA @ 12VDC

1572 250mA @ 24VDC, 500mA @ 12VDC

Holding Force: 1200 lbs

Dimensions:

1571, 1573 11"L x 2.75"H x 1.5"D (27.9 x 6.9 x 3.9 cm)

1572 22" L x 2.75" H x 1.5" D (55.8 x 6.9 x 3.9 cm)

Weight:

1571, 1573 11 lbs (4.9 kg)

1572 26.4 lbs (11.9 kg)

Approvals: UL, CSFM (3774-0324:100), MEA Listed (61-95-E)

Warranty: 1 year

product series features

1200 lb holding force
Autosensing 12/24 VDC voltage input
ANSI/BHMA grade 1 compliant
BHMA certified holding force
Quick mount assembly

more information & related documents

Series Description

The 1570 Series is an ANSI grade 1 modular magnetic lock, with 1200 lb. holding force. They are field upgradeable and can be serviced without removing from the door frame. When power is removed the holding force is released.

Kele Description

MAGNETIC LOCK 12/24 VOLT DC

Manufacturer

Security Door Controls
