MD-31D-W | Security Door Controls | Access Control
PIR MOTION DET WHITE 12/24VDC AC/DC TD 2SPDT
Brand:Security Door Controls
MPN:MD-31D-W
SKU:MD-31DW
product specifications
Output
12 VDC, 24 VDC
Type
PIR Detector
Color
White
product series specifications
Supply Voltage: 12/24 VDC or VAC
Supply Current: 26 mA maximum
Contact Rating: 2 SPDT dry, 2 Amp @ 30VDC
Detection Type: Passive infrared
Relay Hold Time: 1 - 60 seconds
LED Indication: Green (ready)
Range: 14° down, coverage 5 x 6 ft at 7 ft high to 10 x 12 ft at 15 ft high
Operating Temperature: -20° to 120° F (-29° to 49° C)
Dimensions: 6.25"W x 1.5"H x 1.5"D (14.8 x 3.8 x 3.8 cm)
Weight: 0.4 lb (0.18 kg)
Warranty: 1 year
product series features
- Adjustable 1- 60 second time delay
- Micro-based signal processing
- Adjustable "tamper proof" shutters to enable precise target area detection
- Two Form C outputs
- Swivel optics - allow for offset mounting
- Patented black bug guard

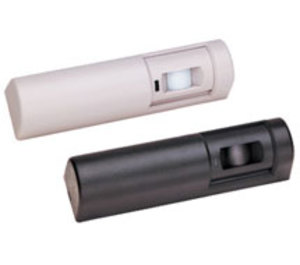

- Available in white or black
more information & related documents
Series Description
The MD-31D passive infrared detector is specifically designed for request-to-exit applications. It has an adjustable 1- 60 second time delay. When angled 14 degrees down, coverage my be 5 x 6 feet at 7 feet high to 10 x 12 feet at 15 feet high. The MD-31D projects a wrap around U pattern down and away from the door to inhibit tampering. The MD-31D may be mounted to frame header, wall or ceiling.
Kele Description
PIR MOTION DET WHITE 12/24VDC AC/DC TD 2SPDT
Manufacturer
Security Door Controls
Related Documents
MD-31D Datasheet
