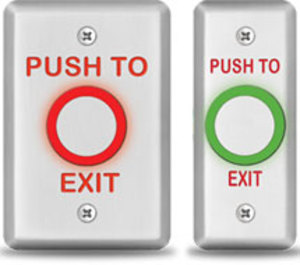

463U | Security Door Controls | Access Control
INTEGRATED TIMER REX 2 AMP, VANDAL
Brand:Security Door Controls
MPN:463U
SKU:463U
12 in stock
product specifications
Type
Push Switch
Color
Stainless Steel
Strike Style
Push
product series specifications
- Supply Voltage:
- 12/24 VDC
- Supply Current:
- :
- LED On Idle-60mA
- :
- Active-120mA
- :
- LED Off Idle-10mA, Active-60mA
- Contact Rating:
- 1 N.O., 1 N.C., 2 Amp @ 30VDC
- Timer:
- 1 - 40 seconds
- Operating Temperature:
- -40° to 160° F ( -40° to 70° C)
- Dimensions:
- :
- 1 Gang Box 2.87‚Ä= x 4.5‚Ä= (7.3 x 11.4 cm)
- :
- Narrow Box 1.75‚Ä= x 4.5‚Ä= (4.5 x 11.4 cm)
- Weight:
- 0.5 lb (0.22 kg)
- Warranty:
- 1 year
product series features
- Vandal resistant stainless steel piezoelectric button and faceplate
- No moving parts
- Billion cycle button technology
- Bi-color status indicator, red and green
- Integrated timer, adj. 1-40 seconds
more information & related documents
Series Description
The SDC 460 Series is a heavy duty, vandal resistant exit switch designed for harsh indoor or outdoor environments. The stainless steel piezoelectric technology is also ideal for high traffic applications. The switch assembly design ensures superior performance in virtually any environment.
Kele Description
INTEGRATED TIMER REX 2 AMP, VANDAL
Manufacturer
Security Door Controls
Related Documents
460 Series Datasheet x
